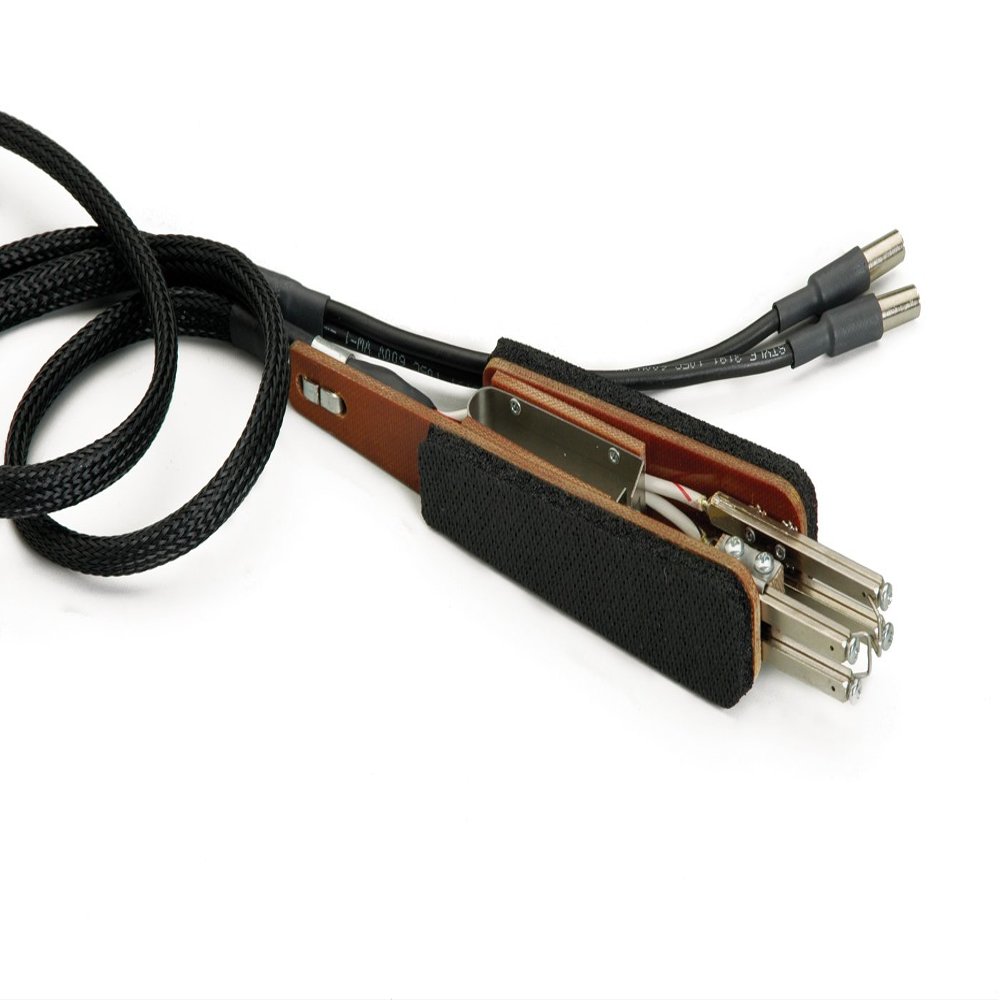

American Beauty 10517 Regular Tweezer Thermal Wirestripping Handpiece

Description

• Light-weight, palm-sized hand piece with comfort grip padding minimizes operator fatigue
• Handpiece is supplied with two Nickel-Chromium Elements for stripping insulation from wire
• RoHS Compliant
• Tapered pin connection type

Regular tweezer thermal wirestripping handpiece. This handpiece is supplied with two Nickel-Chromium Elements for stripping insulation from wire. It is equipped with a 4' neoprene cable (14-2 HPN) with taper pin quick connect terminals for connecting to American beauty power unit (push in turning clockwise until snug) and padded handles for operator comfort. This handpieces uses resistance wire elements to create heat in order to soften or melt through the outer jacket of the wire to be stripped. This handpiece should not be operated above 100 watts. Maximum wattage that is shown reflects a 20-second maximum allowable heating duration. For shorter heating durations, higher wattages may be allowable. This American Beauty thermal wirestrippers were developed to remove insulation from #14 gauge and finer wire. This Wirestripper can successfully and cleanly remove insulation from low-temperature PVC up to and including high-temperature fluorocarbon types (PVC will require low heat settings - just to soften but not burn). Since heat is the essence to softening and parting the insulating material, time required to strip wire will vary with the type and thickness of the jacket, as well as the conductor size. Any shielding under the jacket will slow the softening time, but most insulation will strip cleanly without fraying, given time. Proper stripping method is to heat, twist and pull gently to remove the insulation.
